Multifold

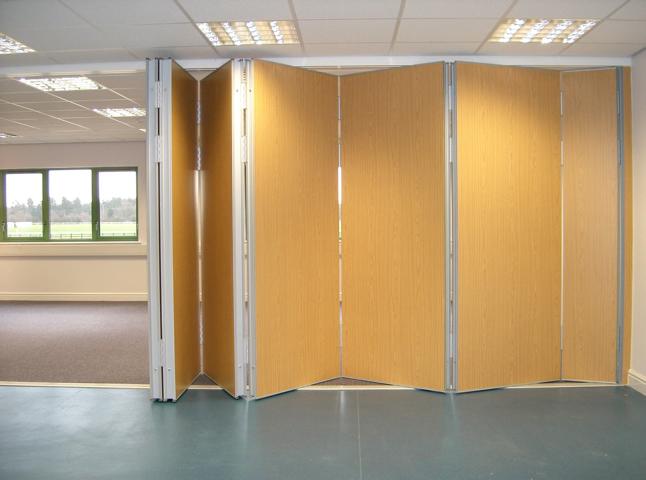

MULTIFOLD SLIDING SYSTEMS are a quality range of custom built hinged panel walls. Most systems are fully floor supported through a bottom roller track system. Optional top hung systems are also available. Designed especially for rooms where multiple uses and rapid layout changes are required, these walls are ideally suited for:
- OFFICES
- HOTELS
- LEISURE CENTRES
- RESTAURANTS
- MEETING ROOMS
- CONFERENCE CENTRES
- SCHOOLS
- SHOWROOMS
The system can either park to one side or bi part to both sides.
Communicating doors are incorporated in most panel
configurations.
The panels are quickly and easily pulled across the room opening
and locked into position. The system can be either ´Centre Fold´
(parked centrally to the line of track) or ´End Fold´ (to one side
of track).
The majority of the walls we produce are finished in either real
wood veneers, vinyls, laminates, melamines or spray painted. Most
face finishes are possible, our technical team would be keen to
discuss any special requirements. Class 1 or Class O surface spread
of flame can also be provided.
Sound reductions from Rw35 to 49dB are available.
The aluminium long edge profiles to each panel have rubber seals
which ensure an airtight seal when the panels are closed. The top
and bottom of each panel has rubber sweep seals which provide the
reasonable level of sound reduction.
Technical Information:
Multispace Systems Partitions are designed to meet the requirements of BB93
Multifold Gallery
|
|
|
|
|
|
